Product Details

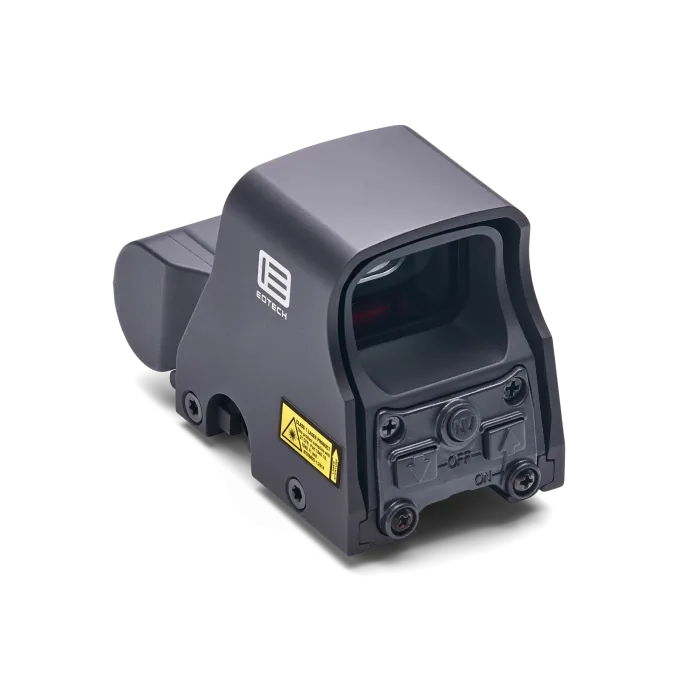

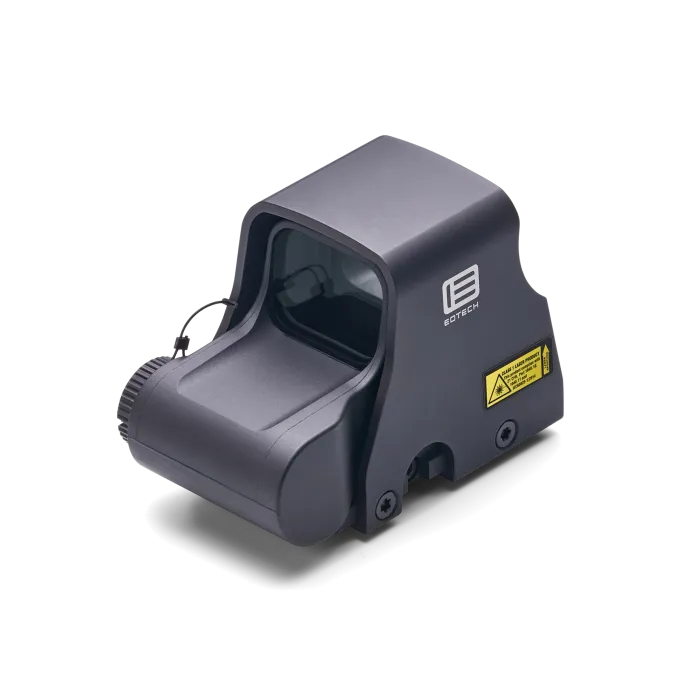

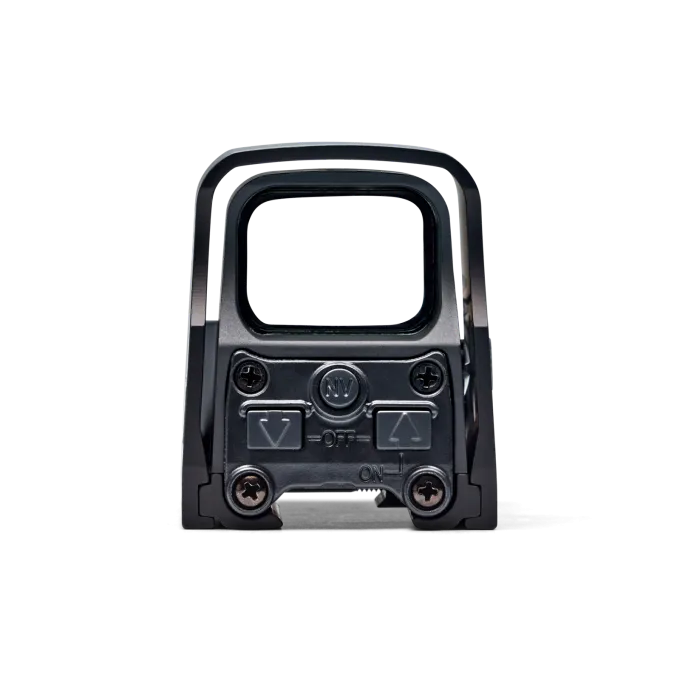

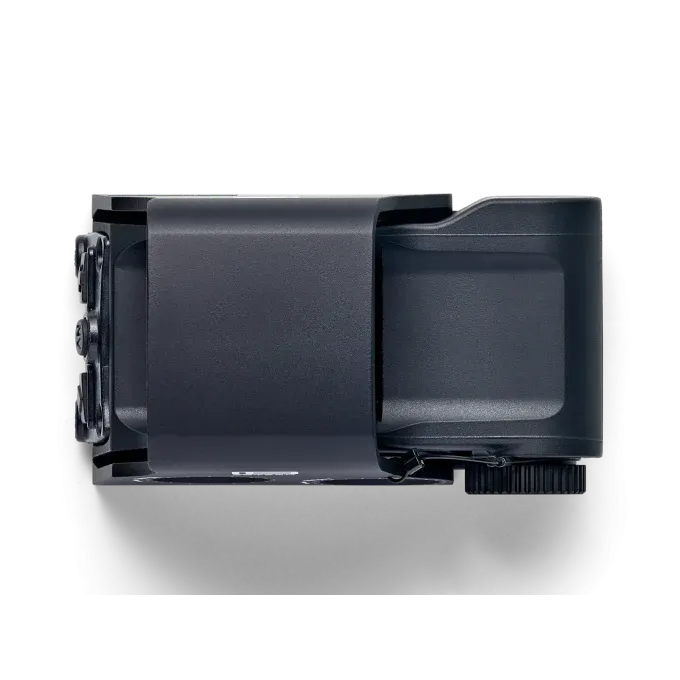

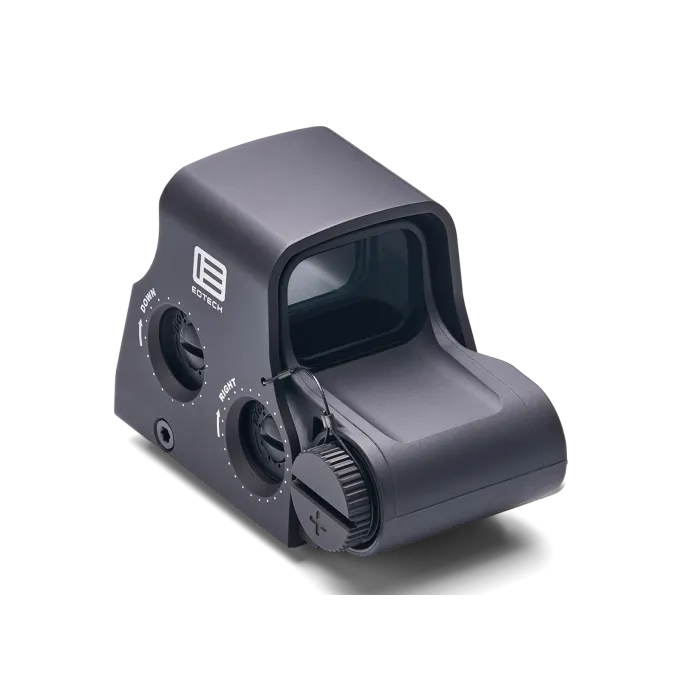

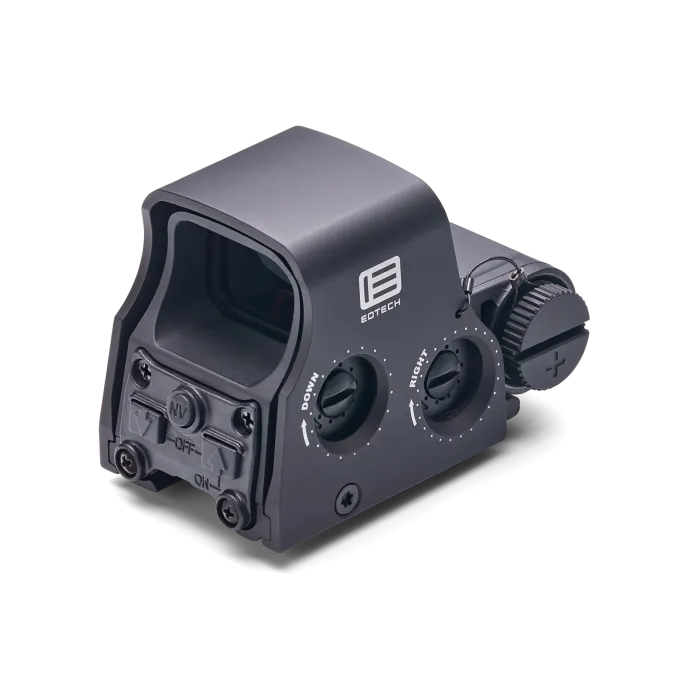

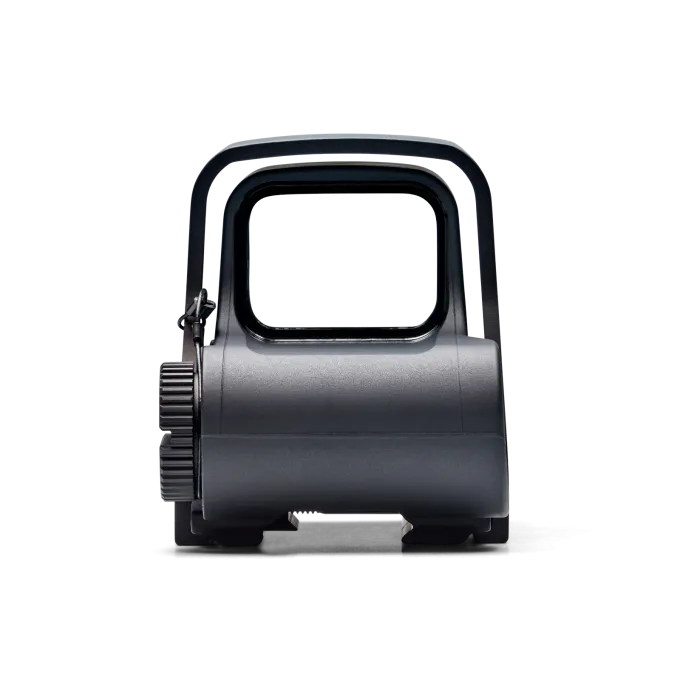

The Model XPS3™ is our shortest and lightest night vision–compatible HWS® to date. Powered by a single CR123 lithium battery, it frees up additional rail space, leaving more room for rear iron sights, magnifiers, or a night-vision mount. Compact, durable, and versatile, the XPS3™ delivers top-tier performance in a minimal footprint.
Includes
- HWS EXPS3™, Quick-Start Guide, Warranty Card, CR123 Battery, Protective Case
0-Reticle (Circle 1-Dot)
The 68 MOA speed ring with a 1 MOA dot enables fast target acquisition and provides three aiming points, calibrated for .223 Cal. 62 Gr., 2,900 Vel. Other calibers can be used by determining the ranges. With shotguns, the ring approximates shot patterns, which vary based on choke and shell type.
The two-dot reticle includes a 68 MOA speed ring with 2 MOA dots and is easily distinguishable with or without magnification. Calibrated for .223 Cal. 62 Gr., 2,900 Vel. with options for other loads and calibers.
A 68 MOA ring with the top cutout and an easy-to-locate chevron at the bottom. Zero your .223/5.56 rifle at 50 yards and the DCR™ offers confident aiming points for up to 200 yards, with an additional 7-yard close-range solution at the chevron point.
Features
Maintain Precision
- HWS® holographic optics let you view the reticle and target simultaneously for quicker, more intuitive target acquisition.
Never Out of the Fight
- The HWS® continues to perform with precision even when the window is damaged or obscured, proving its reliability in the most demanding environments.
Minimize Parallax
- By projecting a holographic reticle at 200m, the HWS® minimizes parallax—making it the Close Combat Optic of choice for USSOCOM.
Specifications
| Size | 3.8" x 2.1" x 2.5" (96.5 x 53.3 x 63.5 mm) |
| Weight | 9.0 oz (255 g) |
| Water Resistant | 33ft. (10 m) depth |
| Mount | 1" Weaver or MIL-STD-1913 rail |
| Windage & Elevation Adjustment | 0.5 MOA per click |
Night Vision Compatibility | Yes |
| Brightness | 20 daylight settings 10 additional settings for Gen I through III+ night vision devices |
| Power Source | 1 x CR123 battery |
| Battery Life | 1,000 continuous hours at nominal setting 12 at room temperature |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
Country of Origin | Made in USA |
