Product Details

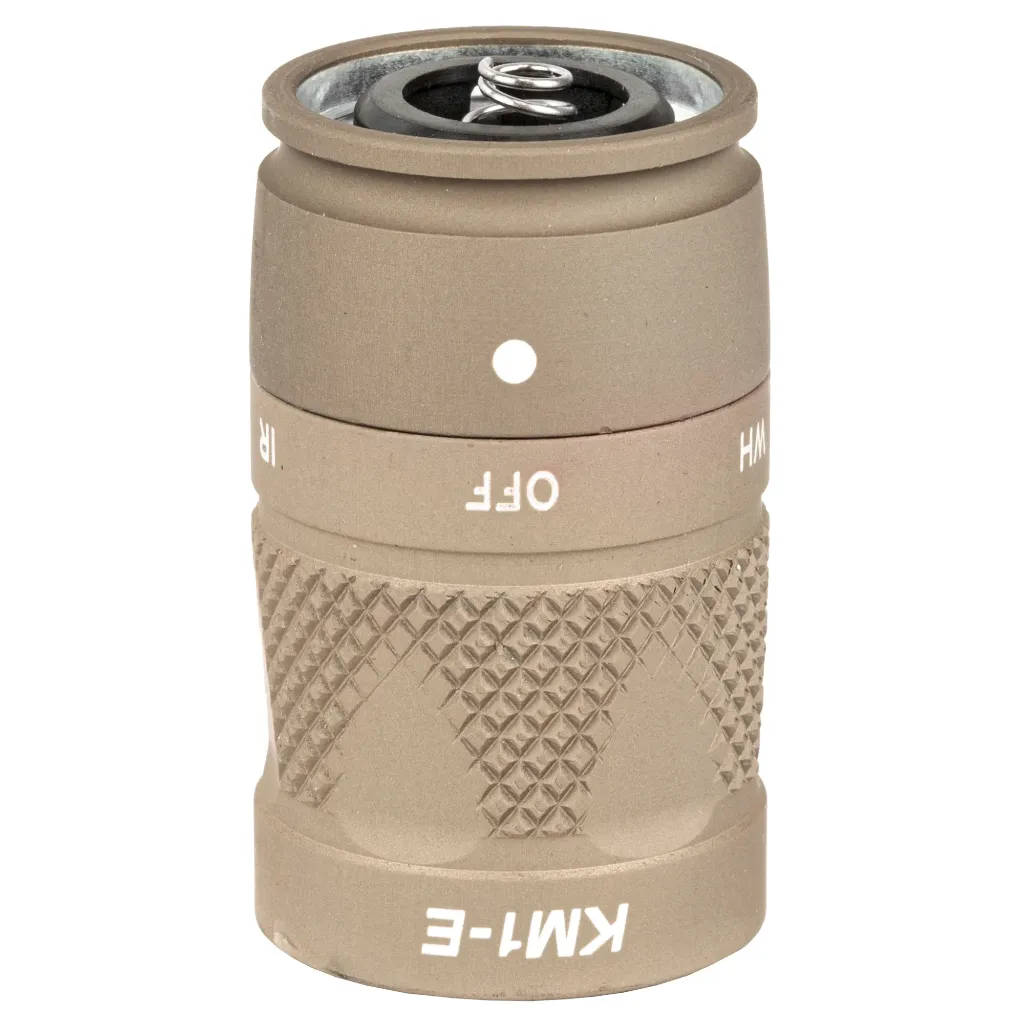

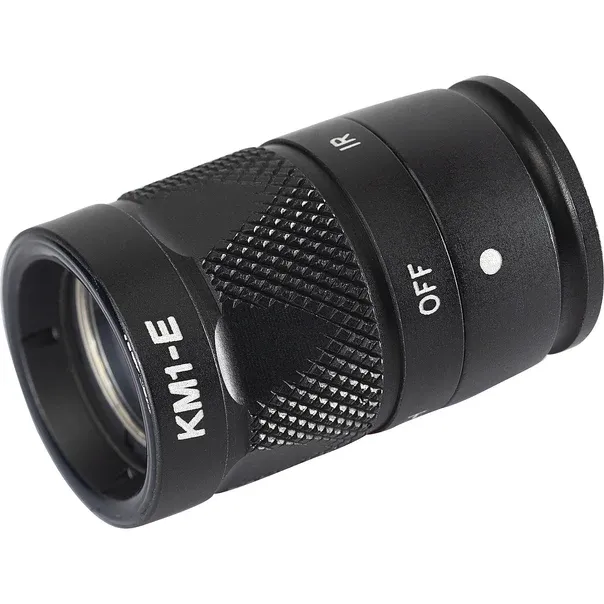

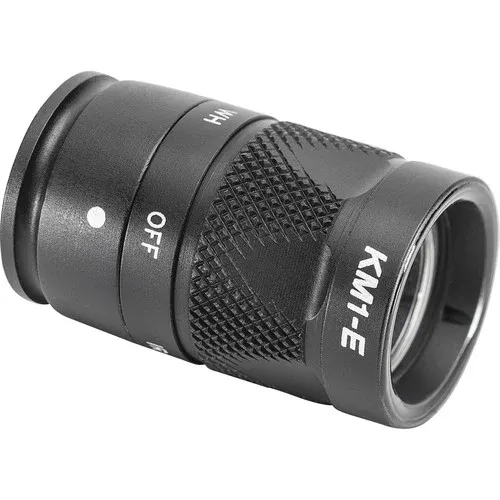

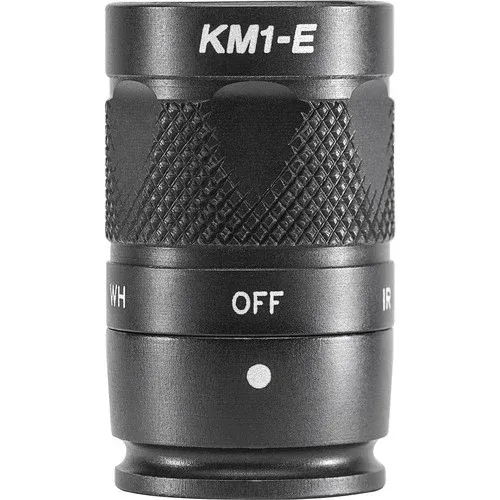

The KM1-E bezel assembly provides both white light and infrared illumination from a single 123A battery. Originally designed to be used on an M300 Scout Light®, this head also fits a wide range of third party light bodies such as the S&S Precision M-Ax Mount.
This small, rugged head features SureFire’s proprietary TIR lens, a far-reaching, high-intensity beam with ample surround light. Simply select the appropriate spectrum for the mission by rotating the bezel. Constructed of lightweight aerospace aluminum coated with a Mil-Spec hard-anodized finish, the ultra-compact KM1-E will withstand the rigors of combat without weighing down your weapon. Upgrade your legacy M300A, B or C Mini Scout Light® to 250 lumens plus 100 mW of infrared illumination with the KM1-E bezel.
Features
- The perfect upgrade for legacy Mini Scout® lights
- Also fits many third party light bodies (such as the S&S Precision M-Ax Mount)
- Hybrid beam pattern delivers PID at medium- to long-range distances with ample spill light to help you maintain situational awareness
- Dual-spectrum efficiency with 250 lumens/100 mW of TIR-focused output
- Twist bezel to switch between LED white light and IR
- Virtually indestructible infrared & white LEDs are regulated to maximize light output and runtime
- On-the-fly switching between IR mode and white-light; no IR filter required
- TIR lens shapes versatile beam with enough reach and surround light for medium- to longer-range operations
- Rugged, durable and combat ready Hard Anodized aluminum body and tempered window
High Output | 250 lumens |
High Runtime | 1.5 hours |
IR Output | 100 milliWatts |
IR Runtime | 6 hours |
Peak Beam Intensity | 9,300 candela |
Battery | One 123A (not incl.) |
Construction | Aluminum |
Finish | Mil-Spec Hard Anodized |
Weight w/ Battery | 1.28 oz (36.3 g) |
Bezel Diameter | 1.06 in (2.7 cm) |
