Product Details

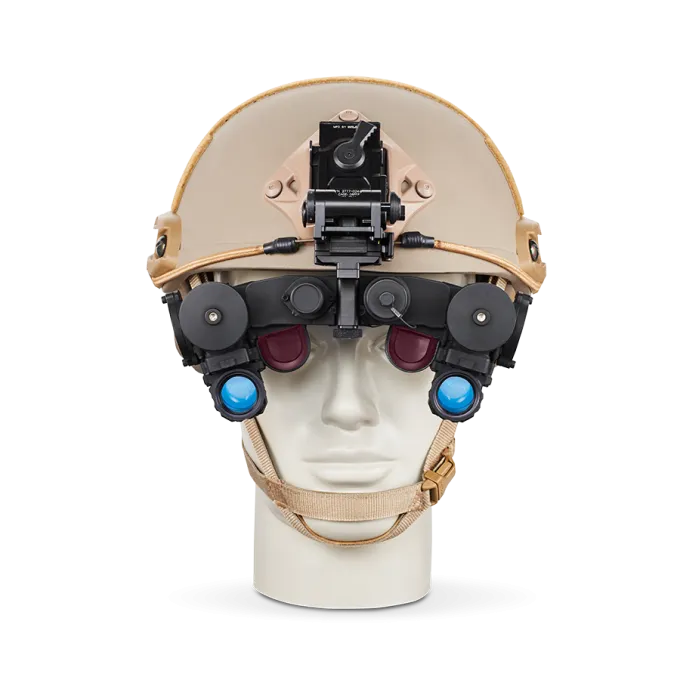

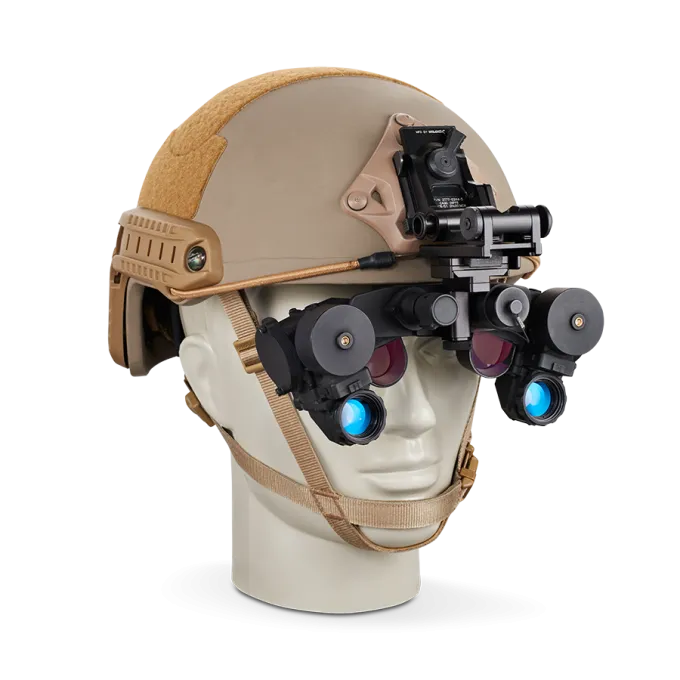

The AN/PVS-21 Low Profile Night Vision Goggle has been designed for aggressive special operations capability in air, water, and land environments. The patented low profile design offers 3-4 inches less protrusion than conventional night vision goggles enabling a wide range of mission applications.
Features
Aggressive ground use over rugged terrain.
High-speed vehicle operations (ground, water, air).
Urban/Close Quarters Battle operations.
Enhanced situational awareness through sensor fusion.
Parachute operations (free fall and static line).
Specifications
| Field of View | 40º |
| Un-Aided FOV | 165º horizontal and 90º vertical |
| Objective Focus | 33cm to infinity |
| System Resolution | 1.3 cy/mr minimum (1.4 or greater typical) |
| Exit Pupil | 10mm on axis |
| Eye Relief | 15mm |
| EMI/EMC | MIL-std-461, class A#, REO2, RSO2, and RSO3 |
| Battery | Single AA battery 1.5-3.6V alkaline and lithium batteries are interchangeable |
| Mount | Precision, quick-release mounting on helmets and head harnesses |
| Video Inputs | Integrated HUD Port |
| Aux. Illumination Source | Two IR LEDs - off/low/high |
| Weight | 760 g |
| Operating Temperature | -30ºC to +52ºC |
| Immersion | 3m standard; 10m special |
