Product Details

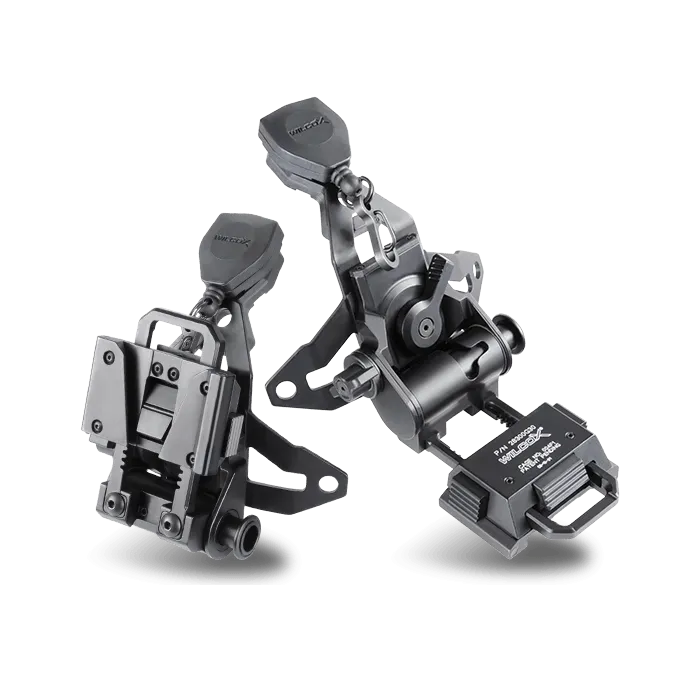

The Wilcox G30 Helmet Mount with Lanyard has become an NVG industry standard. The G30 mount is a permanently fixed mount that securely locks the NVG onto any helmet drilled with a standard three-hole configuration. It offers several adjustment points to create a precise fit and allows the operator to flip the NVGs out of the way when not being used.
Features
- Maintains a very low profile on the helmet
- Dovetail shoe interface securely locks NVG’s into place
- Lightweight/low profile three hole fixed bracket shroud

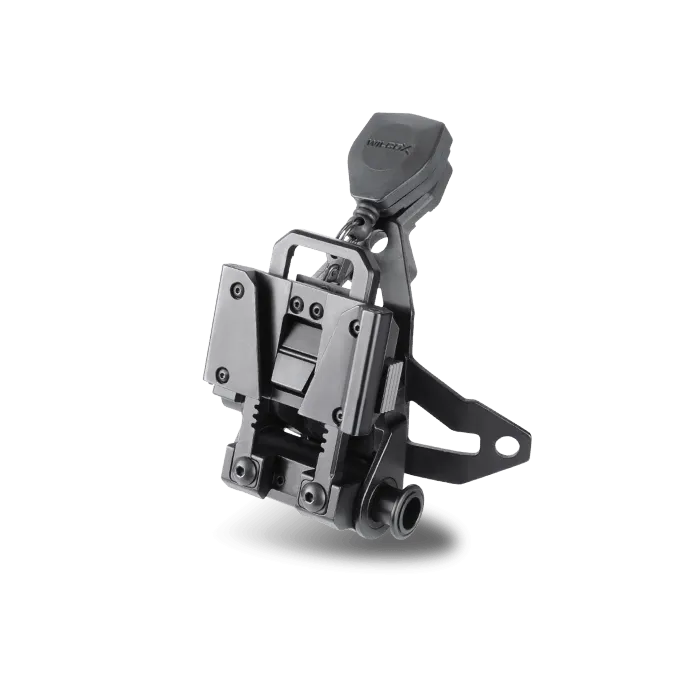

- Flip mechanism allows NVG to be stowed while not in use
- Several points of adjustment for proper eye relief
- Compatible with three-hole drilled helmets
Specifications
| Weight | 181 g (6.4 oz) |
Dimensions | 11.8 cm L x 6.6 cm W x 9.7 cm H (4.65” L x 2.58” W x 3.80” H) |
| Height Adjust | 0.90" Total Vertical Travel |
| Fore/Aft Travel | 1.14” |
| Accommodates | AN/PVS-7A, AN/PVS-7C (Direct Mount) AN/PVS-7B*, AN/PVS-14*, AN/PVS-15*, AN/PVS-18*, AN/PVS-21*, BNVD*, BNVD-G* |
| Wilcox P/N | 28300G30-B (Black), 28300G30-T (Tan) |
* With Wilcox Interface Shoe
