Product Details

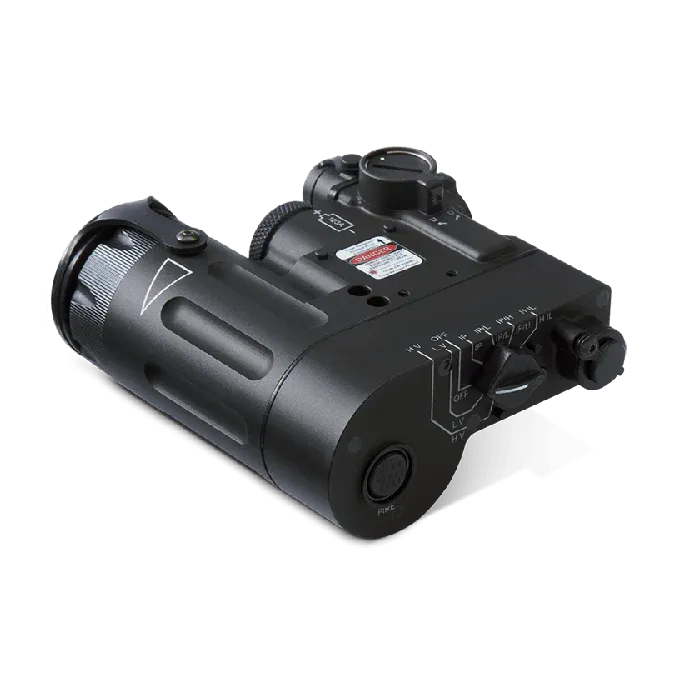

Manufactured with high definition, aspherical telescopic lens technology, the Steiner DBAL-D2 features a 2° to 30° adjustable illumination beam. This highly collimated beam significantly enhances night vision performance and offers an eye-safe means of illuminating distances greater than 1000 m. Military and law enforcement models also features an enhanced end cap, taking full advantage of the added switching capabilities of the full powered D2. The Steiner eOptics Dual Beam Aiming Laser, or DBAL series, is the choice of military units worldwide.
Features
Visible Green Laser
Fully Adjustable Windage / Elevation
Quick Release HT Mount
Co-Aligned Visible & IR Aiming Lasers
IR LED Illuminator
Remote Cable Port
Activation / Mode Selector Switch - Integrated Activation Switch
Available in Black (9001) and Desert Sand (9002)
Specifications
| Wavelength - Visible Green Laser | 532 nm |
| Wavelength - IR Laser | 850 nm |
| Wavelength - IR Illuminator | 850 nm LED |
| Beam Divergence - Visible Red or Green Laser | < 0.8 mRad |
| Beam Divergence - IR Laser | < 0.8 mRad |
| Beam Divergence - IR Illuminator | 2° to 30° |
| Range/Visibility (Night/Day)* - Visible Green Laser | 750 m / 15 m |
| Range/Visibility (Night/Day)* - IR Laser | > 250 m |
| Range/Visibility (Night/Day)* - IR Illuminator | ≤ 1,000 m |
| Temperature | 5° C to +65° C |
| Battery | CR123A |
| Battery Life (mode dependent) | > 3 hours |
| Material | Aircraft Aluminum |
| Weight (with battery) | 12.5 oz. |
| Dimensions | 3.95 (L) x 3.37 (W) x 1.59 (H) |
| Waterproof | Submersible to 5 m |
| Mount | QD HT Mount |
| Windage and Elevation Adjustment | Yes |
| Activation Switch | Integrated Push Button |
| Remote Cable Pressure Pad | Yes |
| Warranty | 2-Year |
| Special Features | Co-aligned Visible & IR Aiming Lasers |
