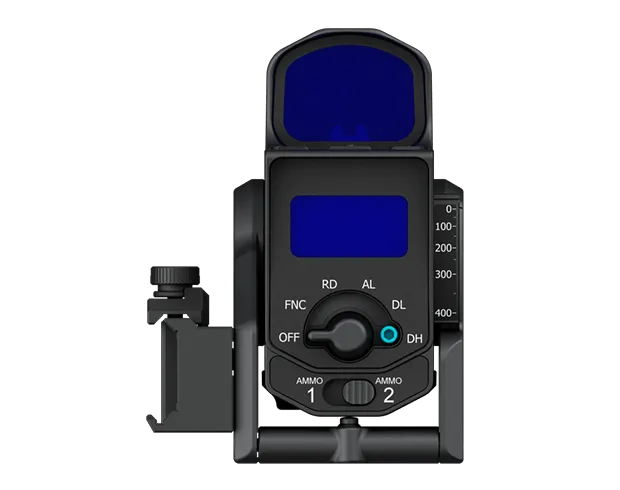

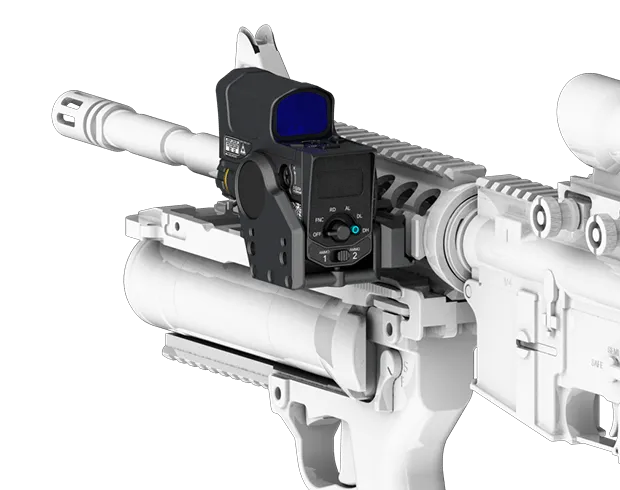

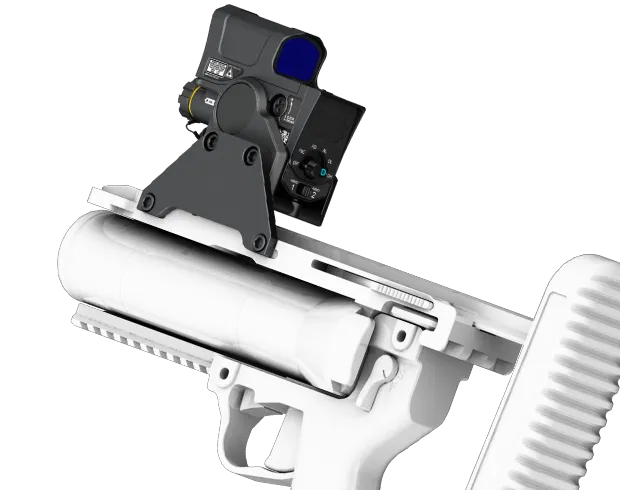

The Wilcox Rapid Acquisition Aiming Module – Grenadier Sighting System (RAAM-GSS) is a lightweight fire control system that features a built-in ballistic computer that provides a shooting solution for distances selected by the grenadier. The RAAM-GSS addresses the capability gap within the forces that increase hit probability to effectively engage targets during the day or at night. The RAAM-GSS is designed for mounting to any Picatinny Rail interface affixed to any assault weapon or a stand alone Grenade Launcher.
Features
- Unique quick and easy bore sighting to grenade launcher
- Reflex sight features an integral back-up iron sights
- NIR aiming laser for rapid and accurate engagements at night
- NIR illuminator provides increased recognition at night
- Aiming references to correspond to ballistic range
- User selectable ballistic solution for ammunition
- Quick selector for 2 pre-programmed ballistic solutions
- Cant Indicator for increased accuracy when firing
- Mounts to MIL-STD-1913 rail without modification
Specifications
Dimensions | 6.61 cm W x 9.63 cm D x 9.22 cm H
(2.60” W x 3.79” D x 3.63” H) |
Weight | <312 g (<11 oz) |
Water Resistance | Waterproof to 1 meter for 30 minutes |
Laser Type/Wavelength/Max Power** | Red VIS Laser/640 nm/<0.7 mW NIR Aiming Laser/840 nm/30 mW NIR Illuminating Laser/840 nm/30 mW |
**Nominal Output Power and is subject to ±10% tolerance. For Laser Safety,
use Nominal Output Power +20%.
