Thermal-Eye 4000B Thermal Imaging Camera
The Thermal-Eye™ 4000B
offers the ultimate surveillance vision advantage for public safety and security applications. The rugged thermal imaging
camera can be easily roof mounted on any vehicle and offers pan/tilt viewing, which is easily controlled by a joystick. The
image is then presented within the safety of the vehicle on a flat panel monitor or managed data terminal. Ideal for mounting
on a police vehicle or in a fixed mount position to survey a perimeter, the Thermal-Eye™ 4000B provides the ability
to see through the dark of night when most criminal activity occurs.
Features
and Benefits: Detects human activity up to 450 meters away. Complete immunity to damage from solar radiation. Joystick and monitor easily configure into any vehicle. NTSC compatible
video output only.

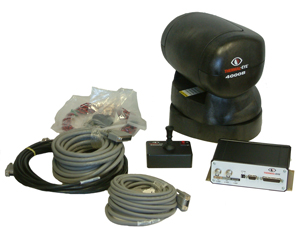

Standard Equipment Included:
Thermal-Eye™ 4000B Thermal Imaging Camera
Electronics
Module
Mounting Ring
Hand
Controller
Cable Set
Installation
Hardware
Operator's Manual

Focal Plane Array | Type & Material | Uncooled Ferroelectric | Pixel Count | 160 x 120 | Spectral Response | 7-14 μm | Thermal imaging Performance | Start-up Time | ~ 45 sec | Contrast / Brightness | Automatic | Detection Range for human Activity | Up to 1500ft (450m) | optics | Minimum Focus Distance | ~ 25ft (8m) | Focus
Method | Automatic
| Field of View
| (12° x
9°) | Video
| output Format | NTSC Compatible | iR Polarity | White | = | Hot, Black | = | Cold | Power | input Voltage
| 9.5 to 16
VDC | | Physical Characteristics | Size | 11.1"L x 11"W x 11.4"H (282 x 280 x 290mm)
| Weight | 10 lbs. (4.5 kg) | Mounting Provisions | Mobile Mount or Stationary Mount | Environmental | operating Temp | -40°C to 55°C | Water Resistance | Carwash spray, (Not submersible) | Pan and Tilt Function | Pan / Joystick Controlled, 360°
continuous Tilt / Joystick Controlled –20° to +180° | EMC Compliance | FCC Part 15 & CE Mark | ordering information | item | Thermal-Eye 4000B (With Camera, Electronics Module, Mounting Ring, Hand Controller and Cable Set) | Part number | NTSC 3264500-0001 | | optional Accessories | item | Vehicle Roof Mounting Bar | Monitor Kit (sold separately from camera) includes 5.6" flat panel w/ shroud, swivel mount,
BNC/RCA adapters | | Part number | 3264568-0001 (white) 3264568-0002 (black) | 3197573-0004 | |
Item #4000B
|
